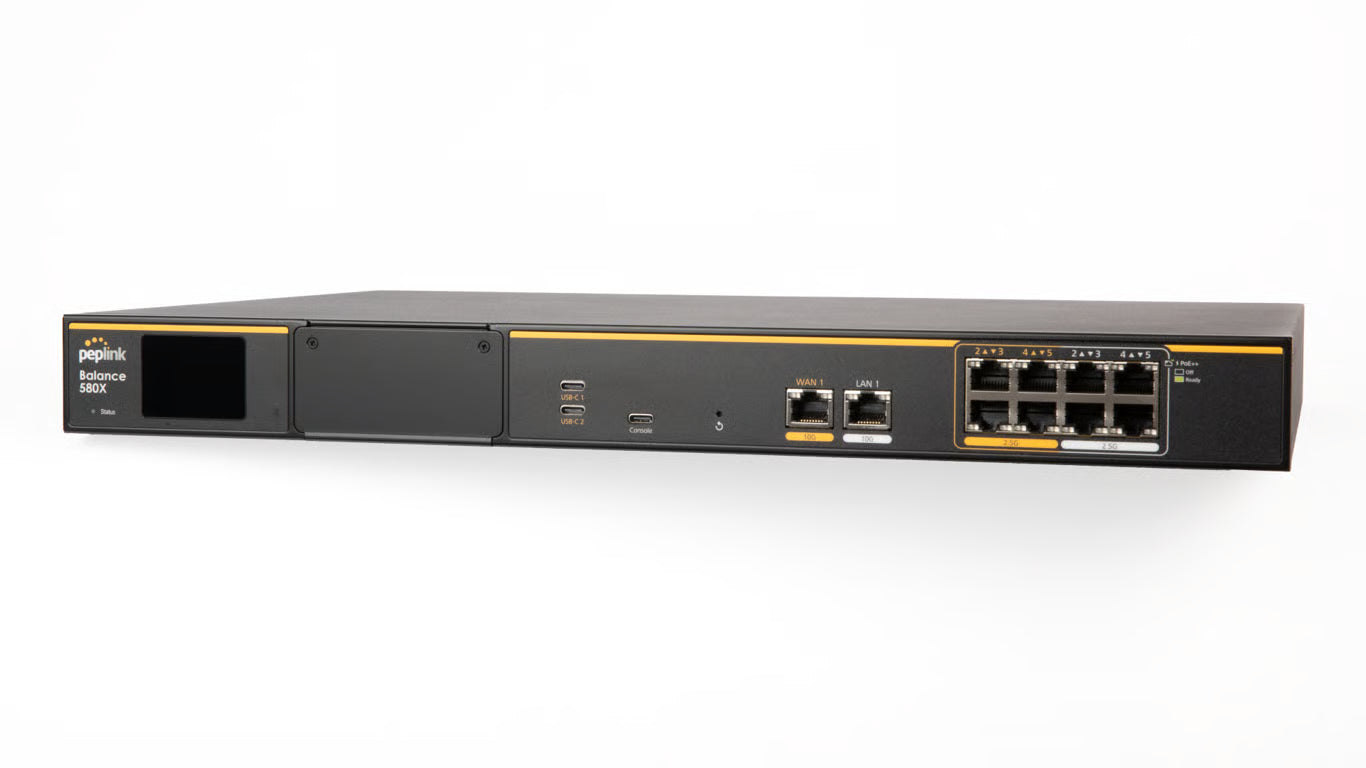

Peplink Balance 580X SD-WAN Router

Enterprise-grade unbreakable internet with power to spare. The Peplink Balance 580X is a high-performance SD-WAN router that bonds multiple links into gigabit-class connectivity, with configurable multi-gig ports and built-in PoE++ to power your whole edge deployment from one platform.

Ideal for demanding, multi-site and mission-critical networks, it delivers up to 1Gbps SpeedFusion bonding, 8Gbps router throughput, and integrated 5G capability (via optional FlexModule Mini). Power heavy-duty devices like PTZ cameras, Wi-Fi 7 access points and Peplink Dome/Antenna MAX 5G units directly — no separate injectors or extra cabling. Manage everything remotely through InControl 2.

What's Included
- 1 × Peplink Balance 580X Router
- 1 × Power Cord (ACW-614)
- 1 × Ear Rack Mount Kit with screws
- 4 × Rubber Feet

Key Features
- Gigabit SpeedFusion bandwidth bonding, hot failover and WAN smoothing
- Configurable 2.5G Multi-Gig ports (set as WAN or LAN) plus 10G WAN and 10G LAN
- 8 × 802.3bt Type 4 PoE++ outputs, 720W total PoE budget
- Optional 5G/LTE and centralised SIM management via FlexModule Mini (sold separately)
- Edge computing with Docker (8GB internal storage, expandable via USB)
- Cloud-managed via InControl 2; AP & Switch Controller standard
- RCM approved, TAA compliant

Specifications
- WAN: 4 × 2.5G Multi-Gig + 1 × 10G Multi-Gig Ethernet, 2 × USB-C, 1 × optional cellular
- LAN: 4 × 2.5G Multi-Gig + 1 × 10G Multi-Gig Ethernet
- Router throughput: 8 Gbps
- SpeedFusion VPN throughput: 1 Gbps (256-bit AES or no encryption)
- SpeedFusion VPN peers: 100 (expandable to 300 / 500 via licence)
- Recommended users: 500–2000
- Max controlled APs / switches: 100
- Power input: AC 100–240V
- PoE output: 8 × 802.3bt Type 4 PoE++ (720W total budget)
- Power consumption: 37W nominal / 39W max (excl. PoE and USB-C output)
- Operating temperature: 0°C to 40°C
- Humidity: 10–95% (non-condensing)
- Mounting: 1U rackmount
- Certifications: FCC, CE, RoHS
- Warranty: 1-Year Limited

Dimensions
- 440 × 310 × 44 mm
- Weight: 4.26 kg
