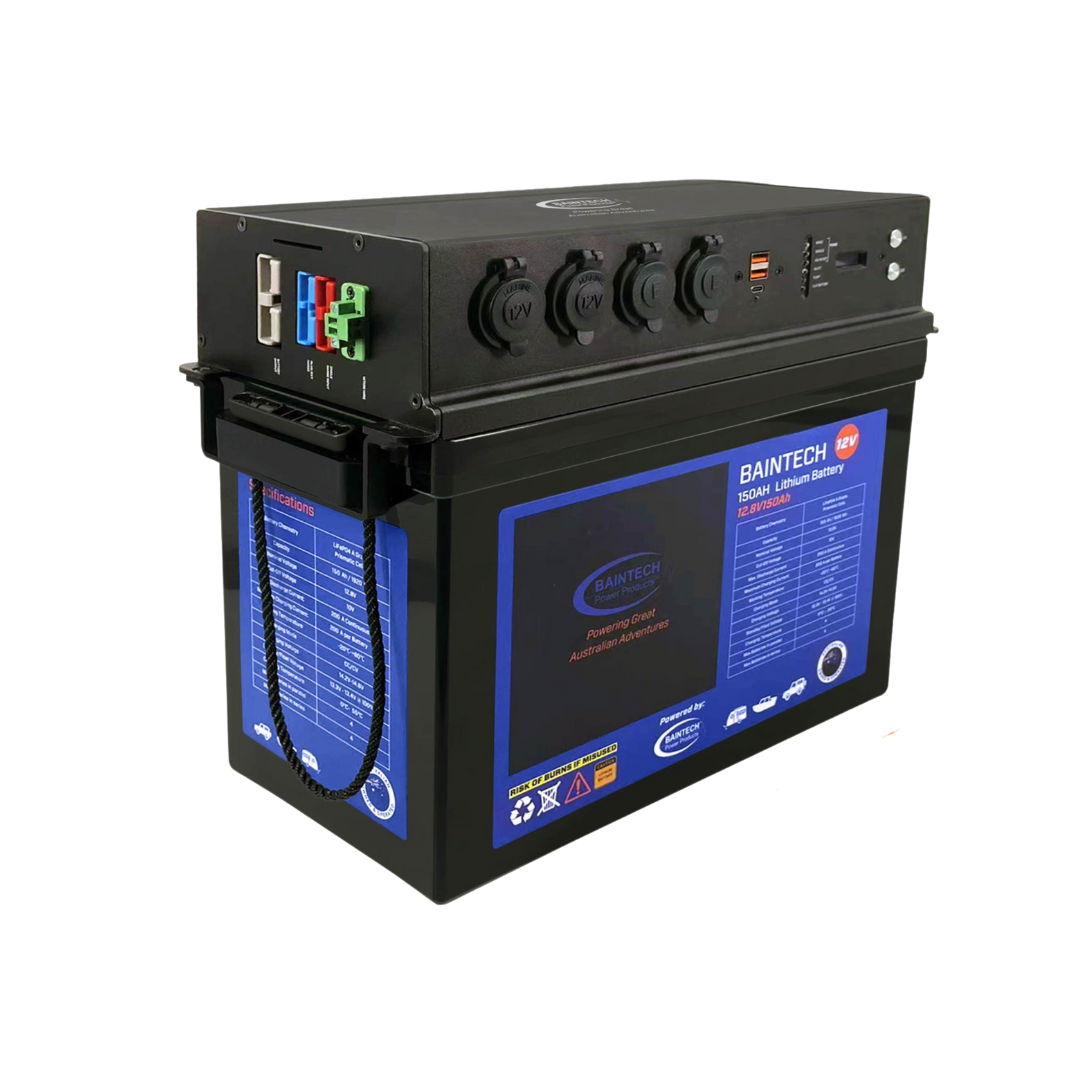

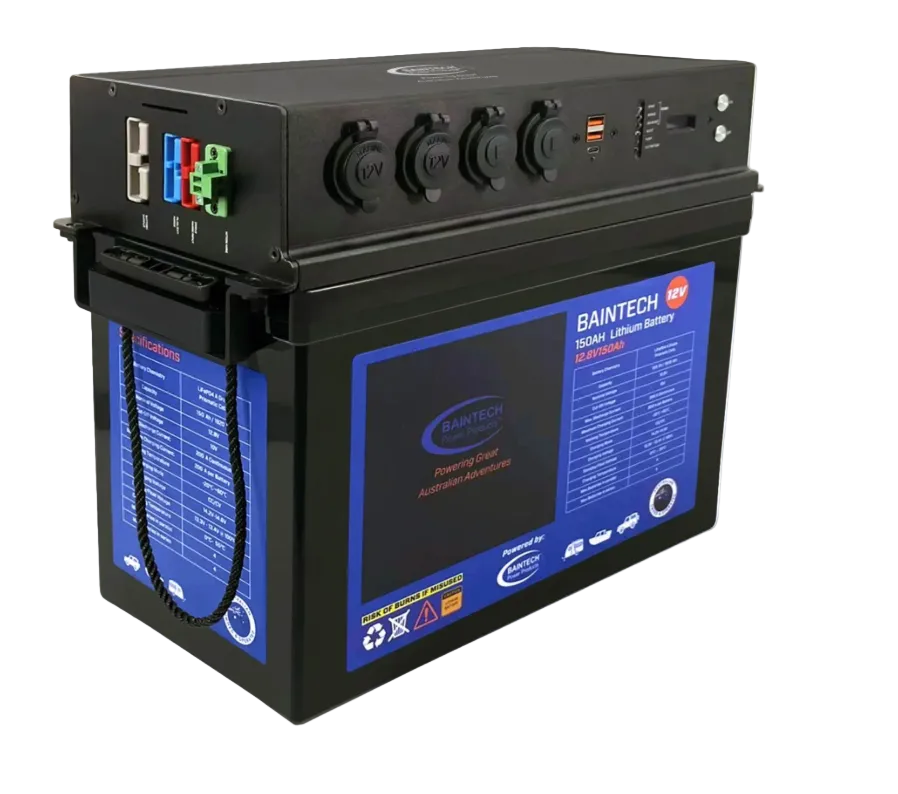

Baintech Lithium Power Station 150AH

• • Weight: 17.5kgs
  • Dimensions: 384 x 194 x 333.5
  • Terminal Type: M8
  • Battery Housing: ABS
  • Cell Type-Chemistry: LiFePO4 Cell
  • Guaranteed 5-year manufacturer warranty
  • Built-in bluetooth with mobile app

Specifications:

• Nominal Voltage: 12.8V
• Rated Capacity: 150Ah
• Energy: 1920Wh
• Resistance: ≤30mΩ
• Efficiency: ≥98%
• Cycle Life: >3000 cycles @ 1C, 80% DOD
• Self-Discharge: <5% per month
• Cell Configuration: 4S/1P
• Continuous Discharge Current: 200A
• Pulse Discharge Current: 400A (<1S)
• Recommended Voltage Disconnect: 10V
• BMS Discharge Cut-off Voltage: 10V
• Recommended Reconnect Voltage: 10.8V
• Short Circuit Protection: Anderson SOA (blue), Anderson 50A (red), Anderson 120A (grey), CigaSocket (x2), Engle Socket (x1), USB-C (x2), USB-A QC3.0 (x2), USB-C PD3.0
• Wiring Terminal: 2P
• Display: LED Indicators, Display Screen

Temperature Parameters:

• Discharge Temperature: -20°C to 60°C
• Charge Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 60°C
• BMS High Temperature Cut-off: 65°C

Physical Parameters:

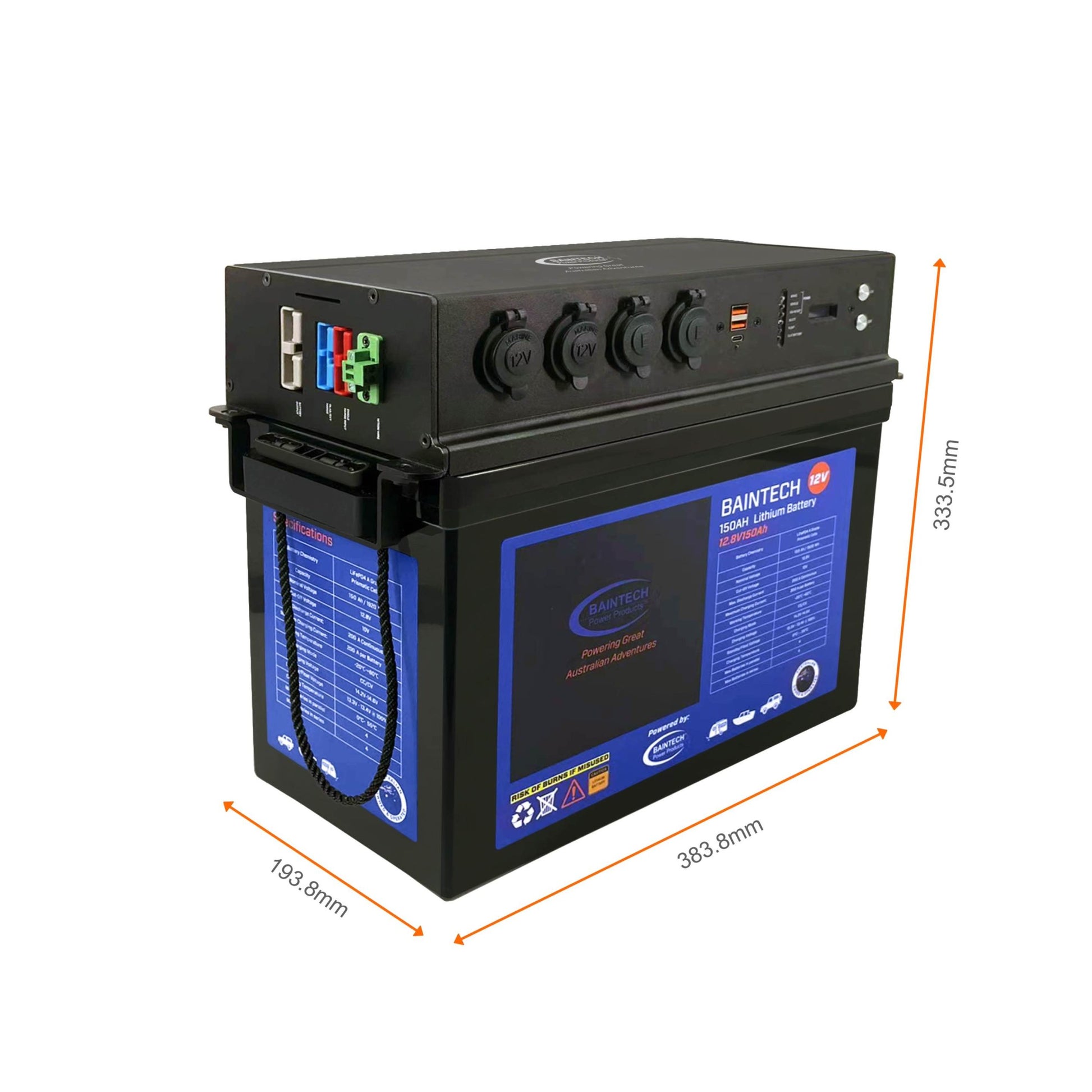

• Dimensions: 384x194x333.5mm / 15.12×7.64×13.13 inches
• Weight: 17.5kg
• Terminal Type: M8
• Battery Housing: ABS
• Housing Protection: IP30
• Chemistry: LiFePO4 Cell
• Communication Protocol: Bluetooth
• Charge Method: Constant Current-Constant Voltage (CC-CV)

Charge Parameters:

• Charge Voltage: 14.2V – 14.6V
• Recommended Float Voltage: 13.3V – 13.4V @ 100% SOC
• Recommended Charge Current: 75A
• Maximum Charge Current: 200A
• BMS Charge Cut-off Voltage: 14.8V

Compatible Power Sources:

• Alternator: DC 11.5V – DC 16V, Max 40A
• Solar: DC 11.5V – DC 50V, Max 40A

Additional Features:

• Ignition: Fully charged/Solar/Alternator
• Protection Features: Overvoltage, Undervoltage, Overcurrent
• Alarm Information: Voltage, Current, SOC
